ADB Device

The adb device demo refers to the demo/adb/usbd_adb_template.c template. It adapts to cherrysh (platform/demo/adb/cherrysh_port.c) and rt-thread msh (platform/rtthread/usbd_adb_shell.c) by default. You only need to add the following initialization in main.

cherryadb_init(0, xxxxx);

If using rt-thread, you also need to enable adb device in menuconfig.

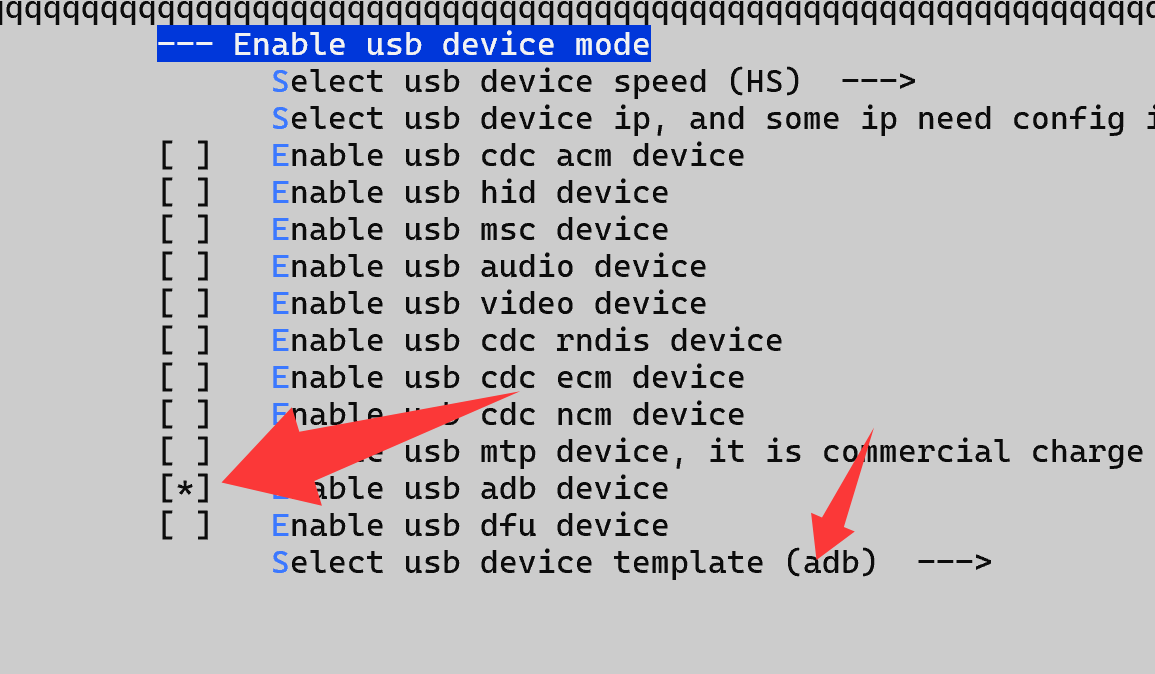

../_images/rtt_adb_shell1.png

Entering ADB

  • When using cherrysh, automatically enters adb mode after enumeration is completed

  • When using msh, you need to input adb_enter in msh to enter adb mode

Exiting ADB

  • When using cherrysh, input exit to exit adb mode

  • When using msh, you need to input adb_exit in msh to exit adb mode

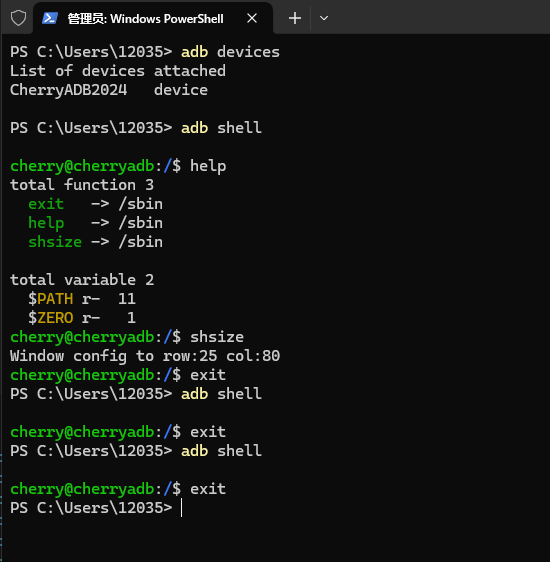

../_images/cherryadb.png

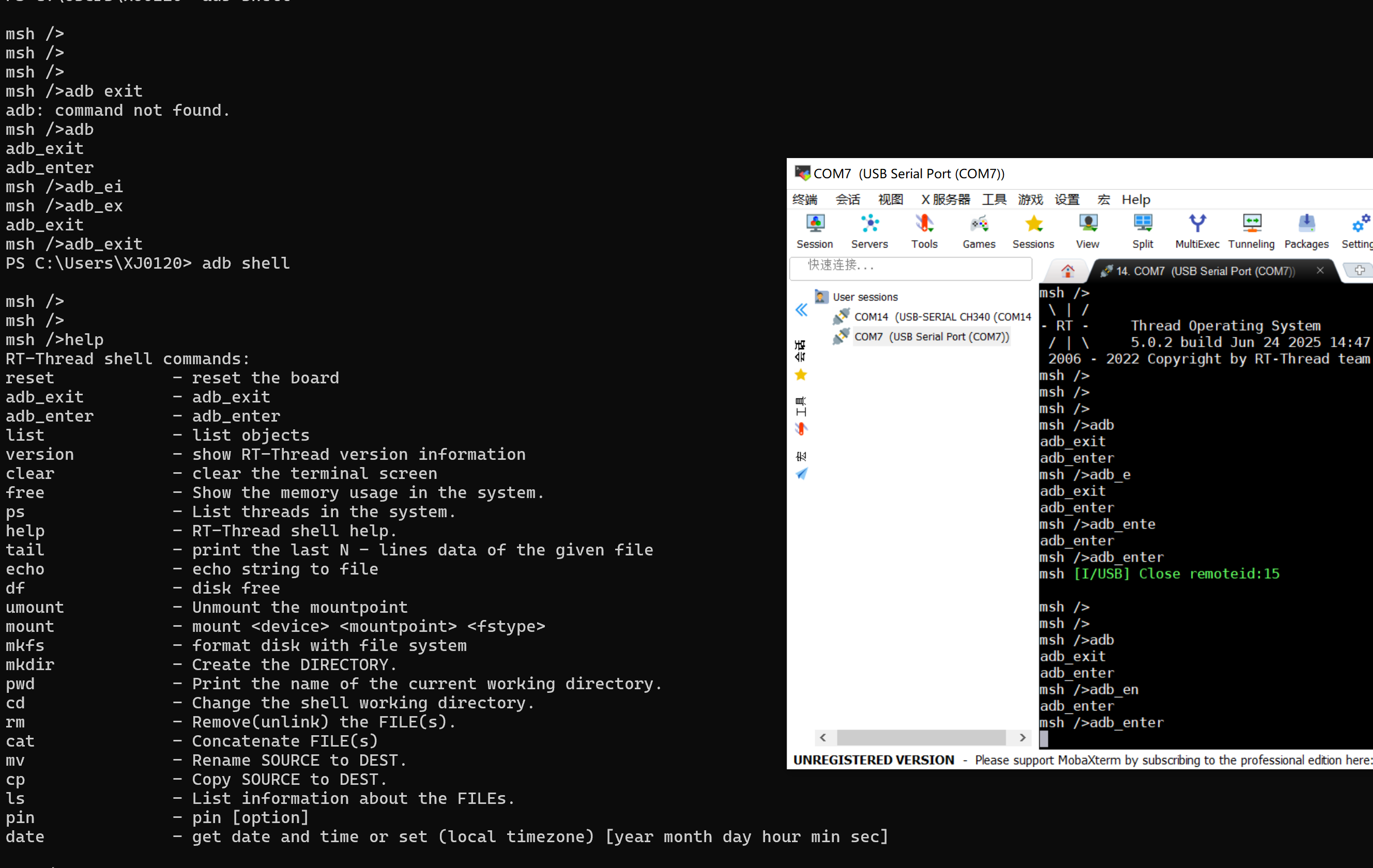

../_images/rtt_adb_shell2.png
