Commercial Support

The following content is commercially charged. For support, please email 1203593632@qq.com.

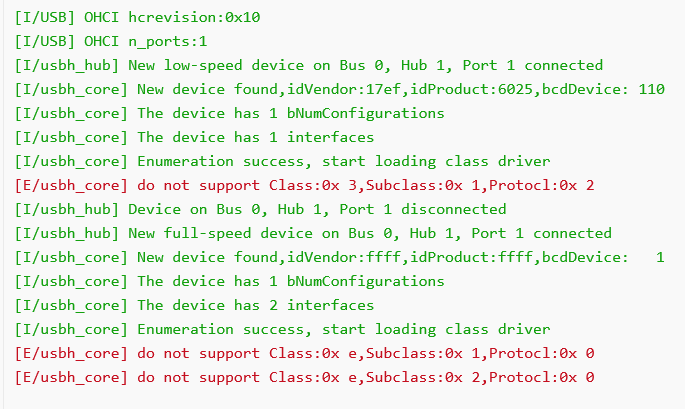

  • OHCI Driver

../_images/ohci.png

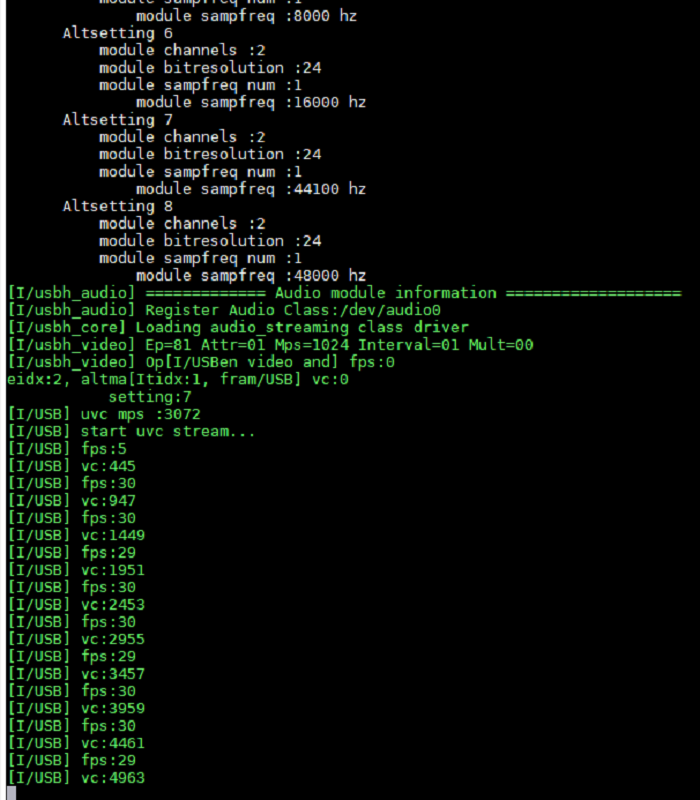

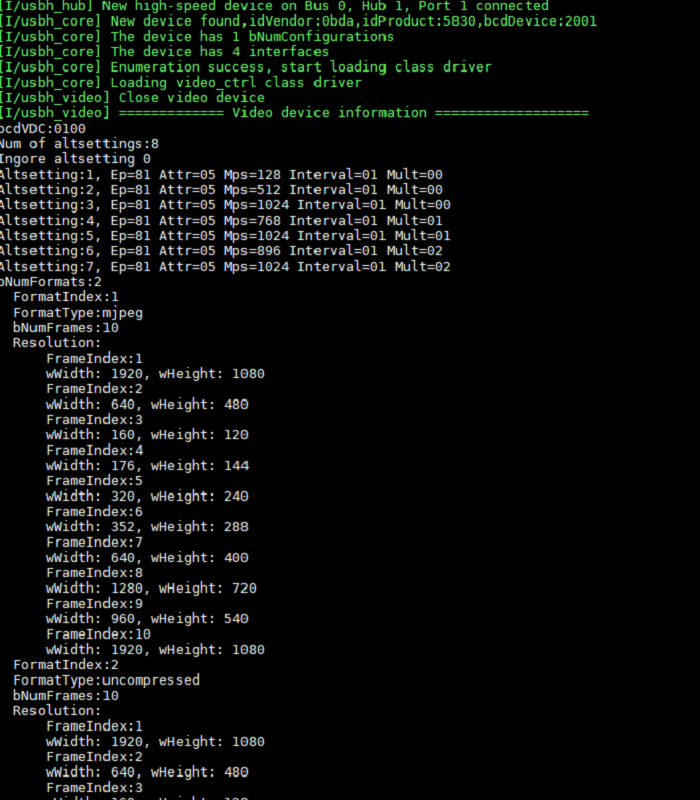

  • ISO driver and UAC/UVC framework in EHCI IP, used with host UVC & UAC classes (this part is open source). ISO supports 1/2/3 packets per microframe, supports MJPEG and YUV cameras

../_images/ehci_hostuvc1.png
../_images/ehci_hostuvc2.png

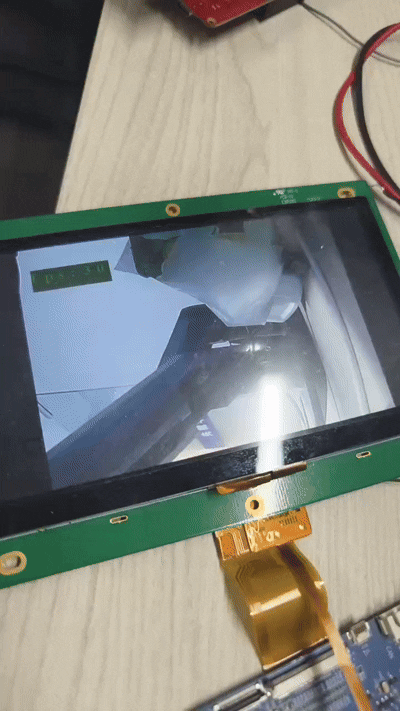

Demonstrates USB Host UVC driver with 648 * 480 YUV camera. FPS 30.

../_images/usbhost_uvc1.gif

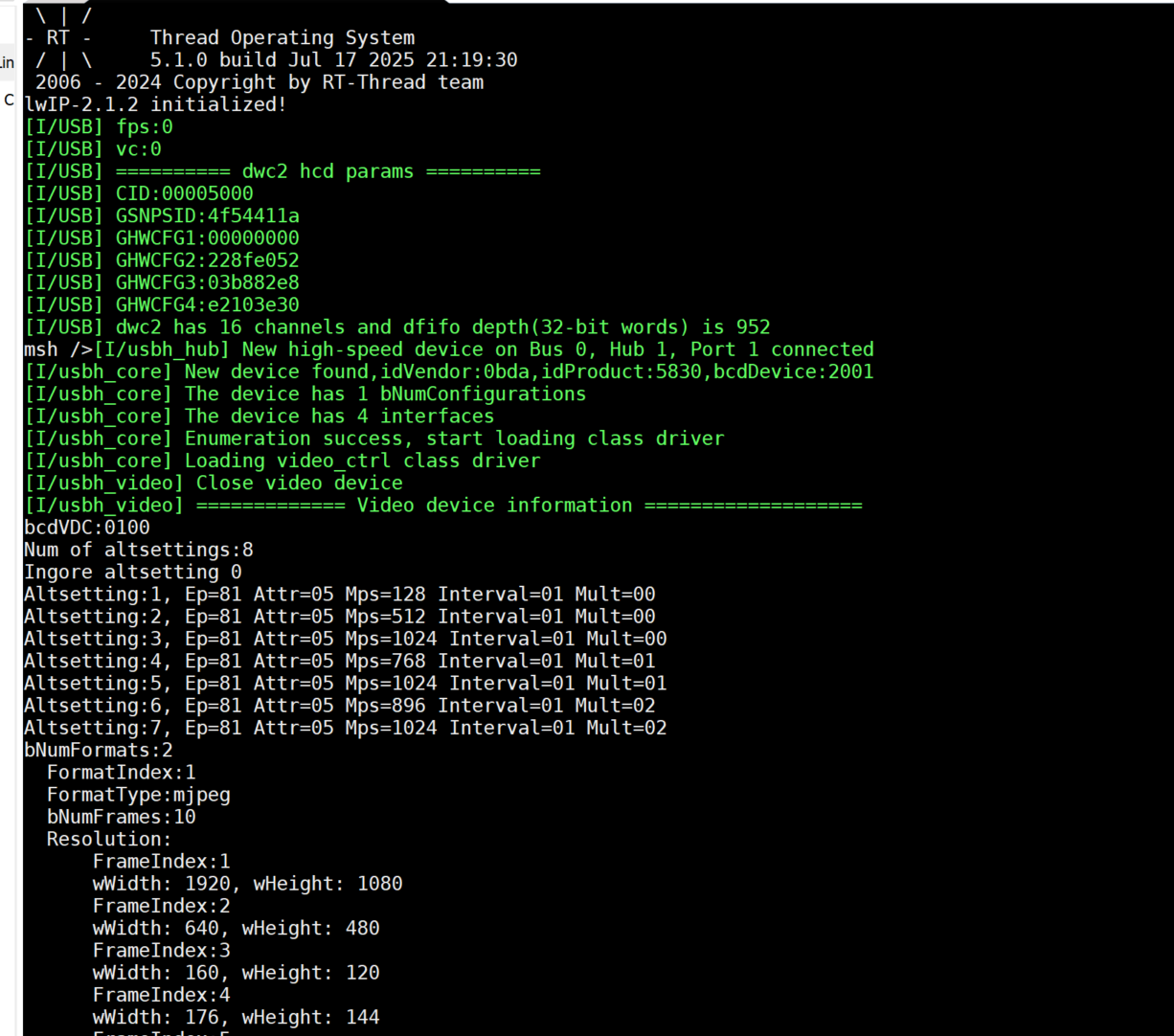

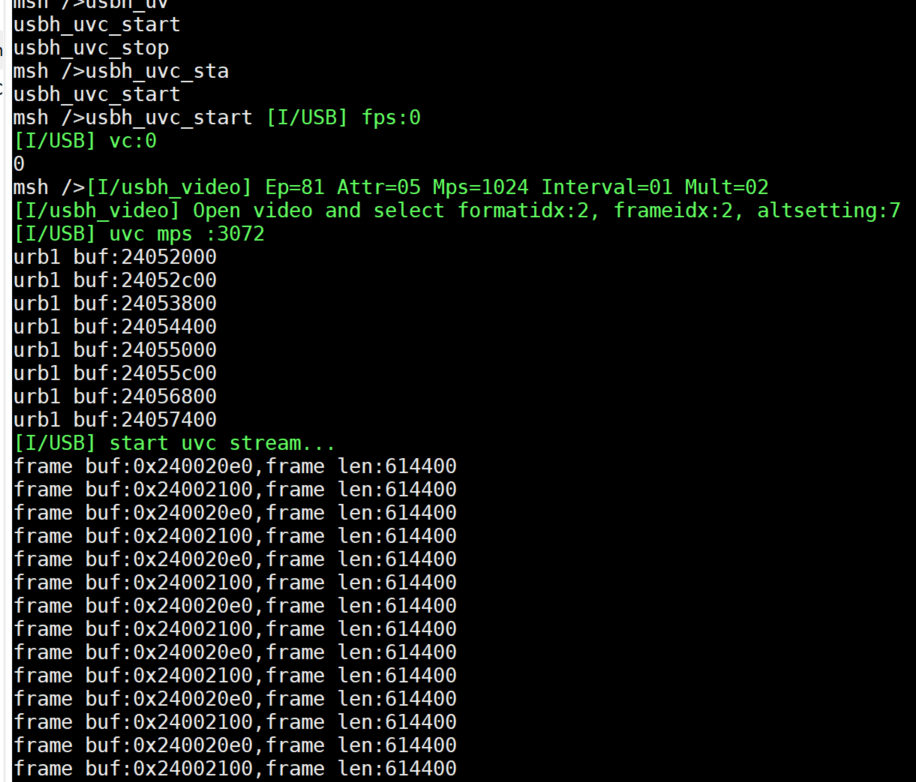

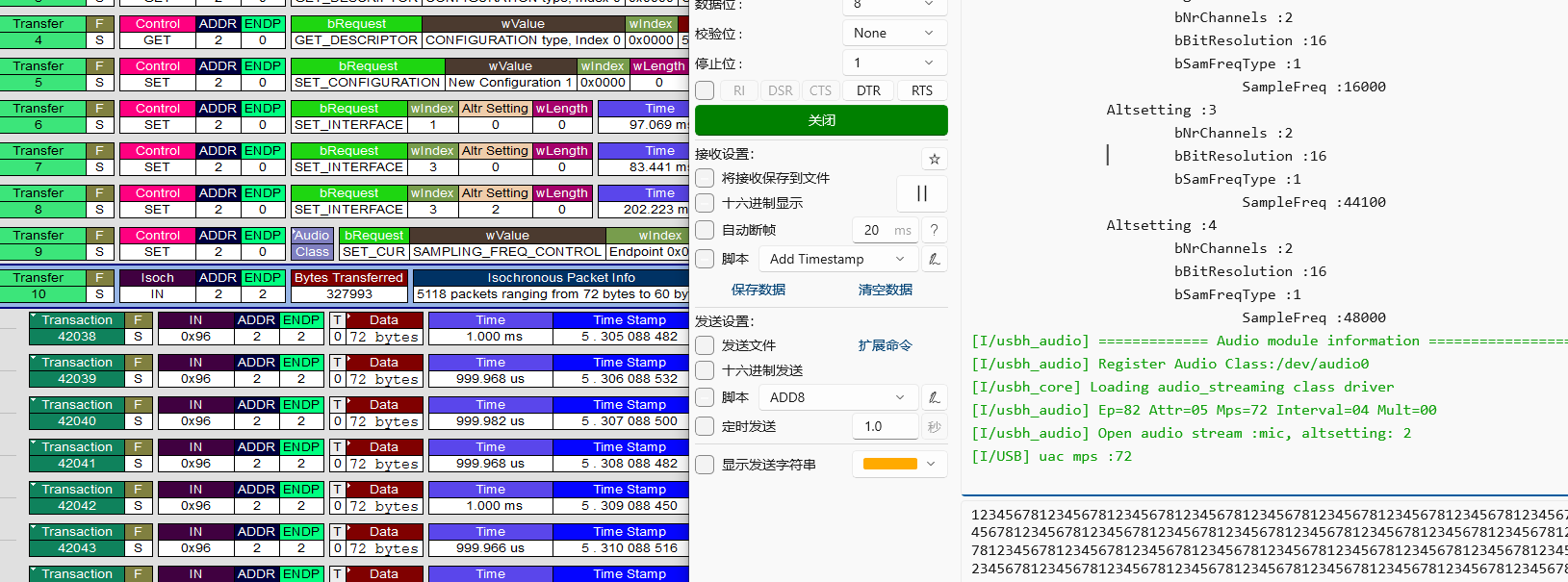

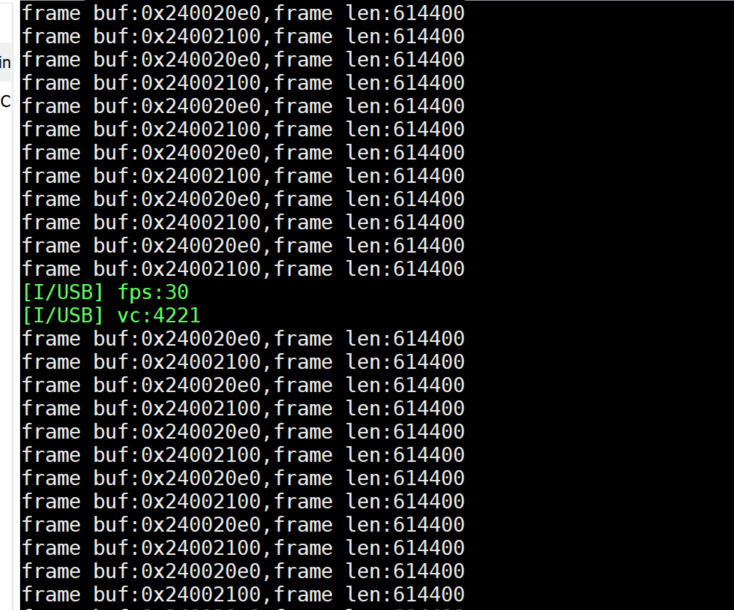

  • ISO driver and UAC/UVC framework in DWC2 IP, used with host UVC & UAC classes (this part is open source). ISO supports 1/2/3 packets per microframe, supports MJPEG and YUV cameras

../_images/dwc2_hostuvc1.png
../_images/dwc2_hostuvc2.png
../_images/dwc2_hostuvc3.png
../_images/dwc2_hostuac.png

  • ISO driver and UAC/UVC framework in MUSB IP, used with host UVC & UAC classes (this part is open source). MUSB requires standard IP specified by Mentor Graphics company

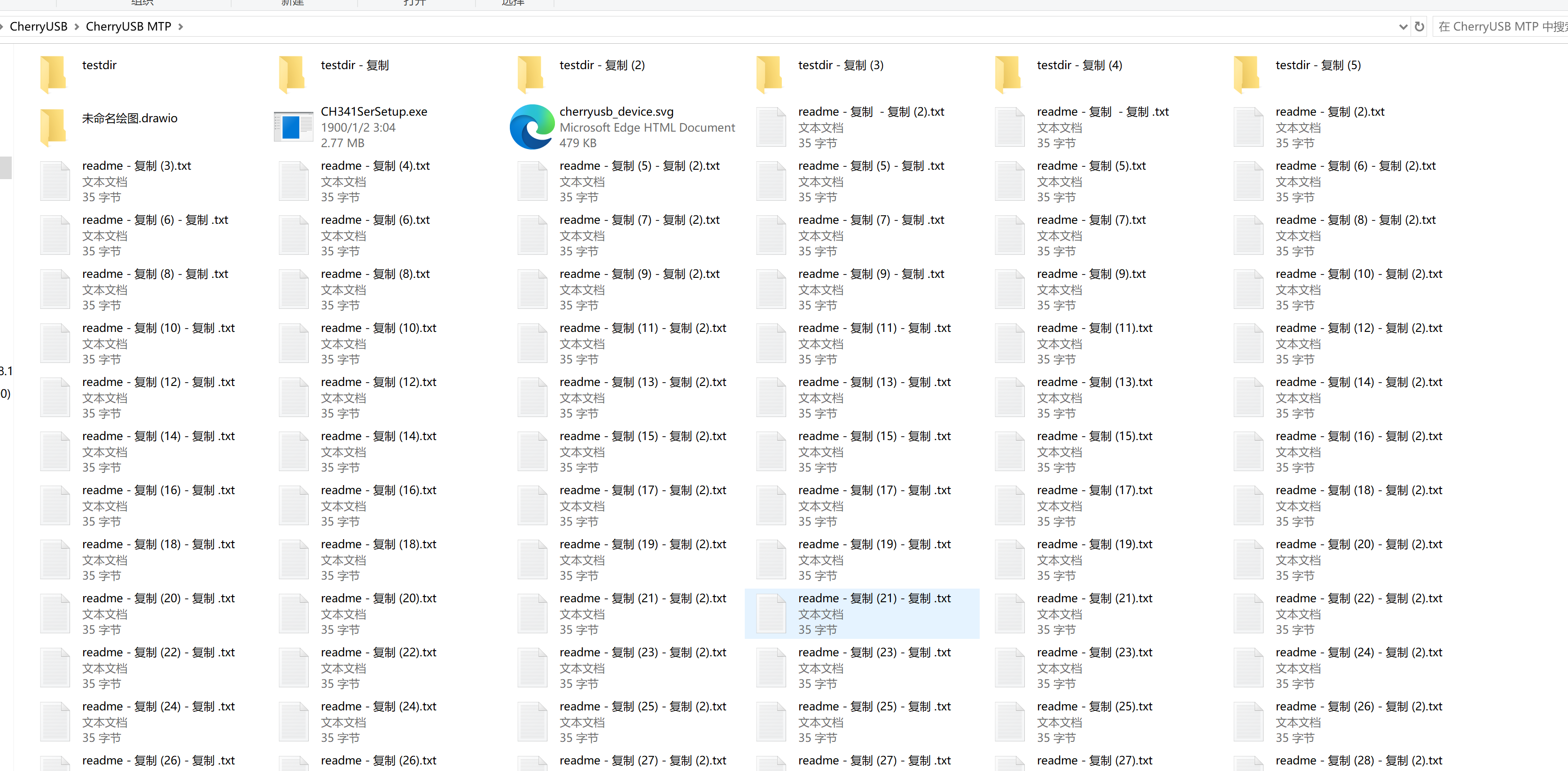

  • Device MTP class driver, supports multiple files and folders, supports MCU-side file addition/deletion and synchronization with PC

../_images/mtpdev.png

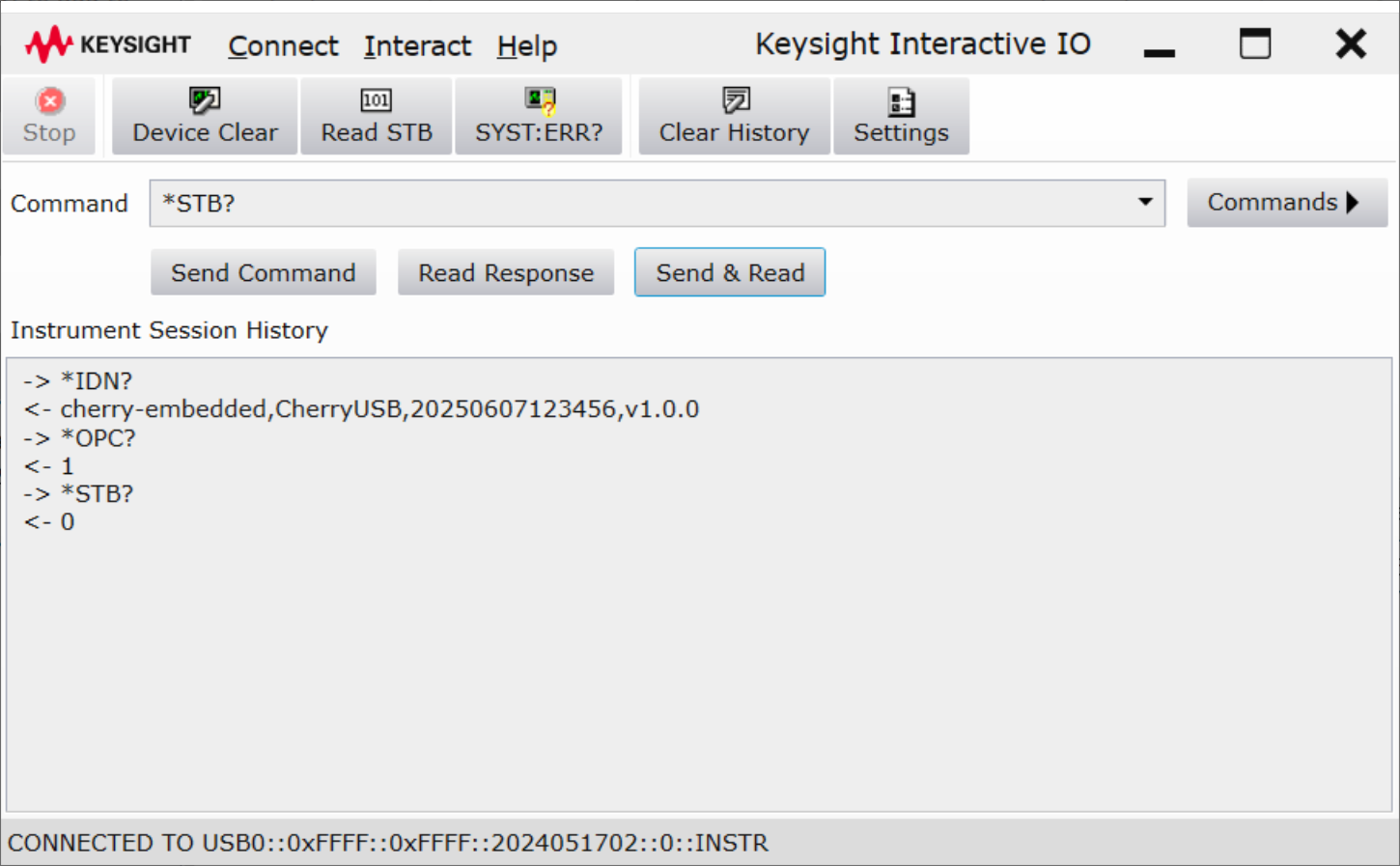

  • Device TMC class driver

../_images/tmcdev1.png
../_images/tmcdev2.png

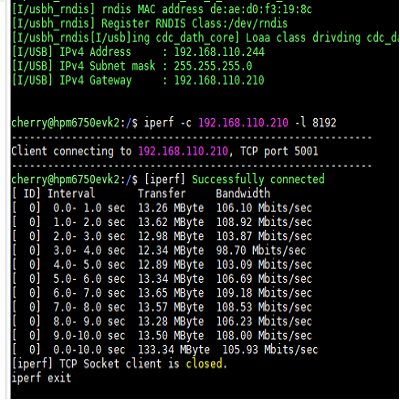

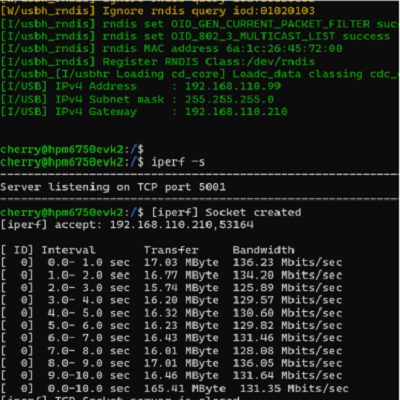

  • USB network class high-performance version optimization, includes CDC-NCM, CDC-RNDIS, proprietary class drivers (supports multi-packet transmission and reception), RNDIS example shown below

../_images/rndistx.png
../_images/rndisrx.png

  • Customized class driver or IP driver adaptation

  • Technical support services
