chryusb_configurator
chryusb_configurator mainly serves to generate descriptor arrays when using the device protocol stack, which are then registered using usbd_desc_register.

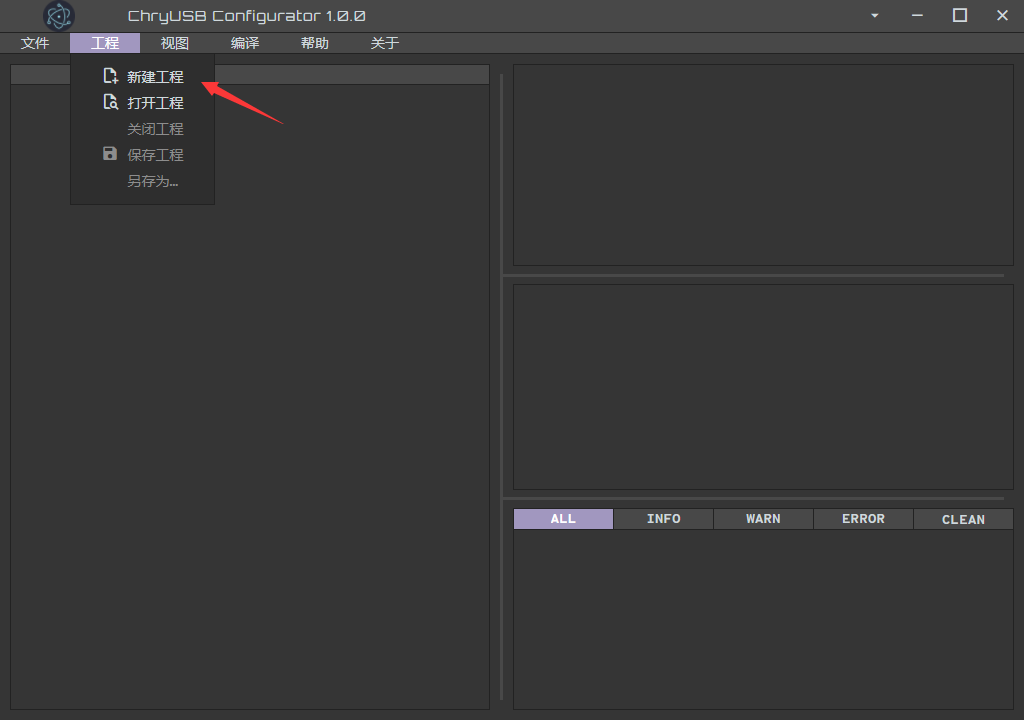

First, we download chryusb_configurator.exe from GitHub, then install it all the way through. Then double-click to open it, click Project, and click New Project

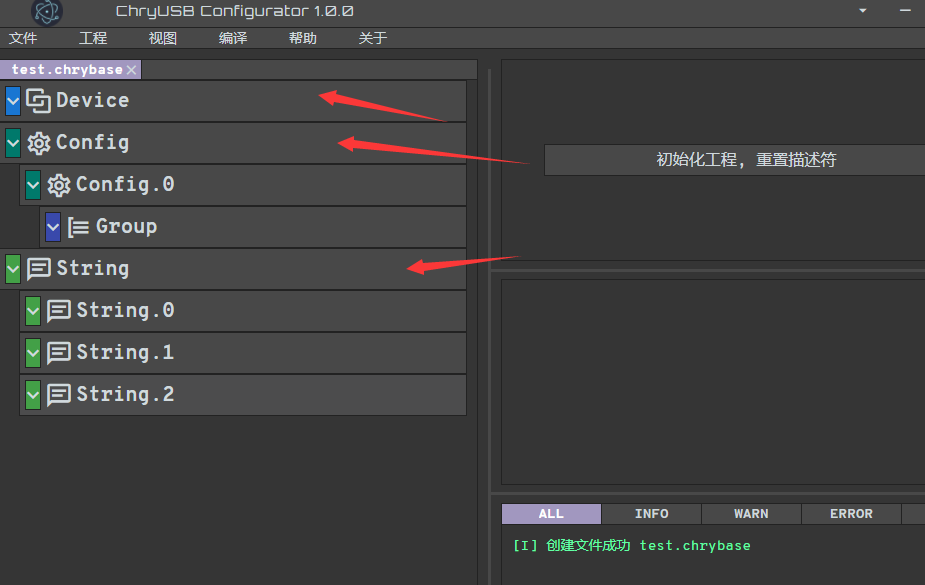

After creation, default descriptor configuration will be generated, including Device Descriptor, Configuration Descriptor, String Descriptor, and String Descriptor supports three by default
Then we can modify the information of related descriptors as needed, such as VID and PID in Device Descriptor, class parameters, Power in Configuration Descriptor, etc.

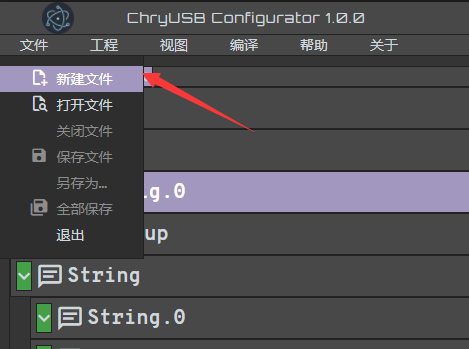

Then for class addition, you need to click File and click New File

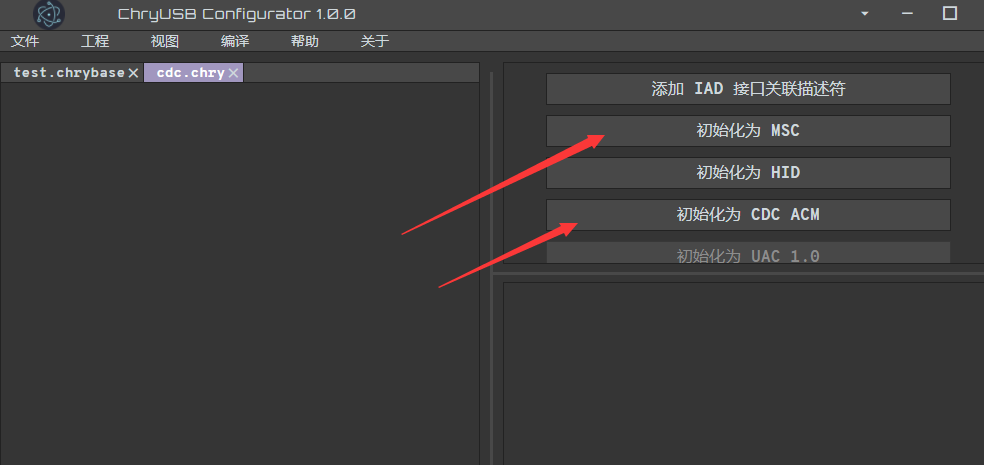

Then the right side provides some class descriptor templates. Select one for initialization
If there are multiple classes, repeat the above two steps

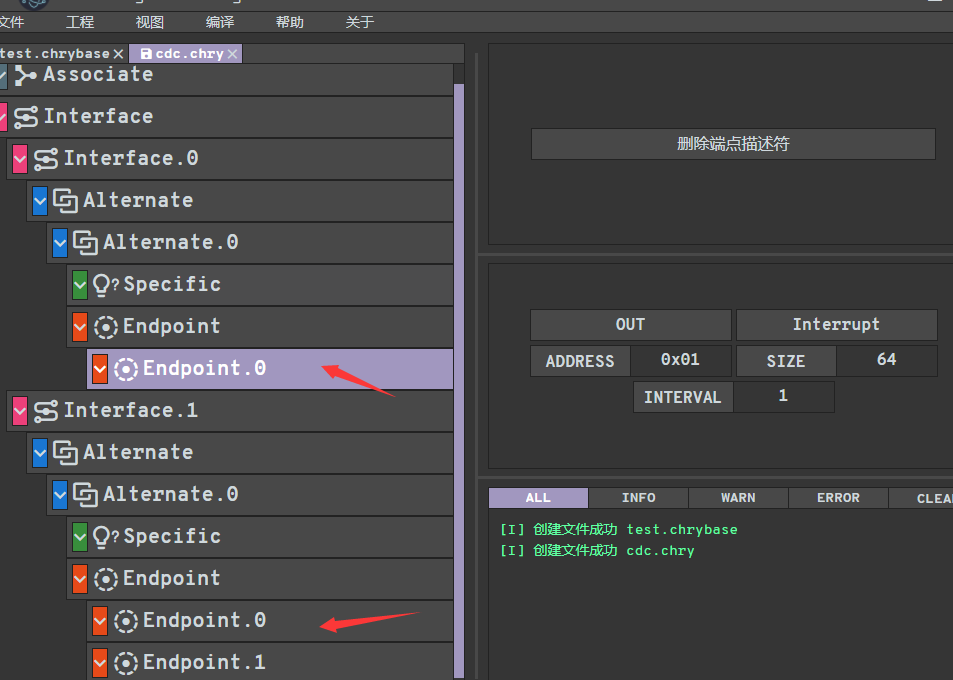

Then we modify the parameters of related endpoints as needed, such as direction, address, size, interval
Finally click File and save the file with extension .chry

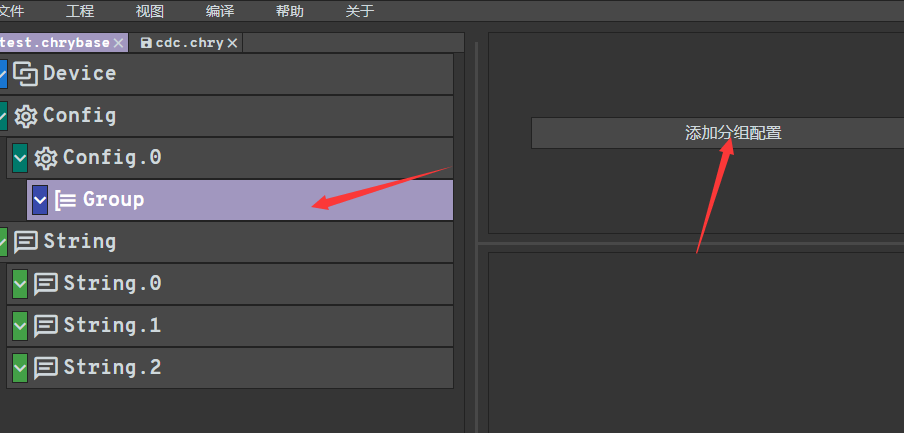

Switch to the project file with extension .chrybase, then click Add Group Configuration to import the just configured class file
Click Project and click Save Project

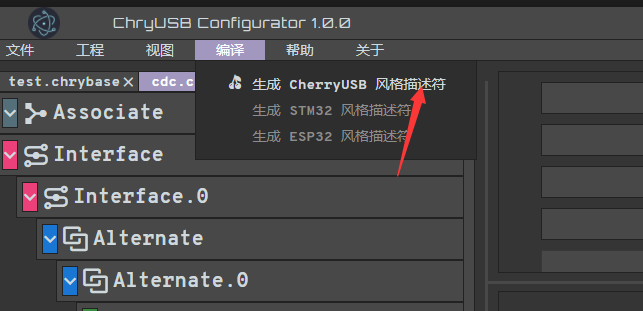

Click Compile to generate descriptor arrays
Copy the compiled files to your own project for use
